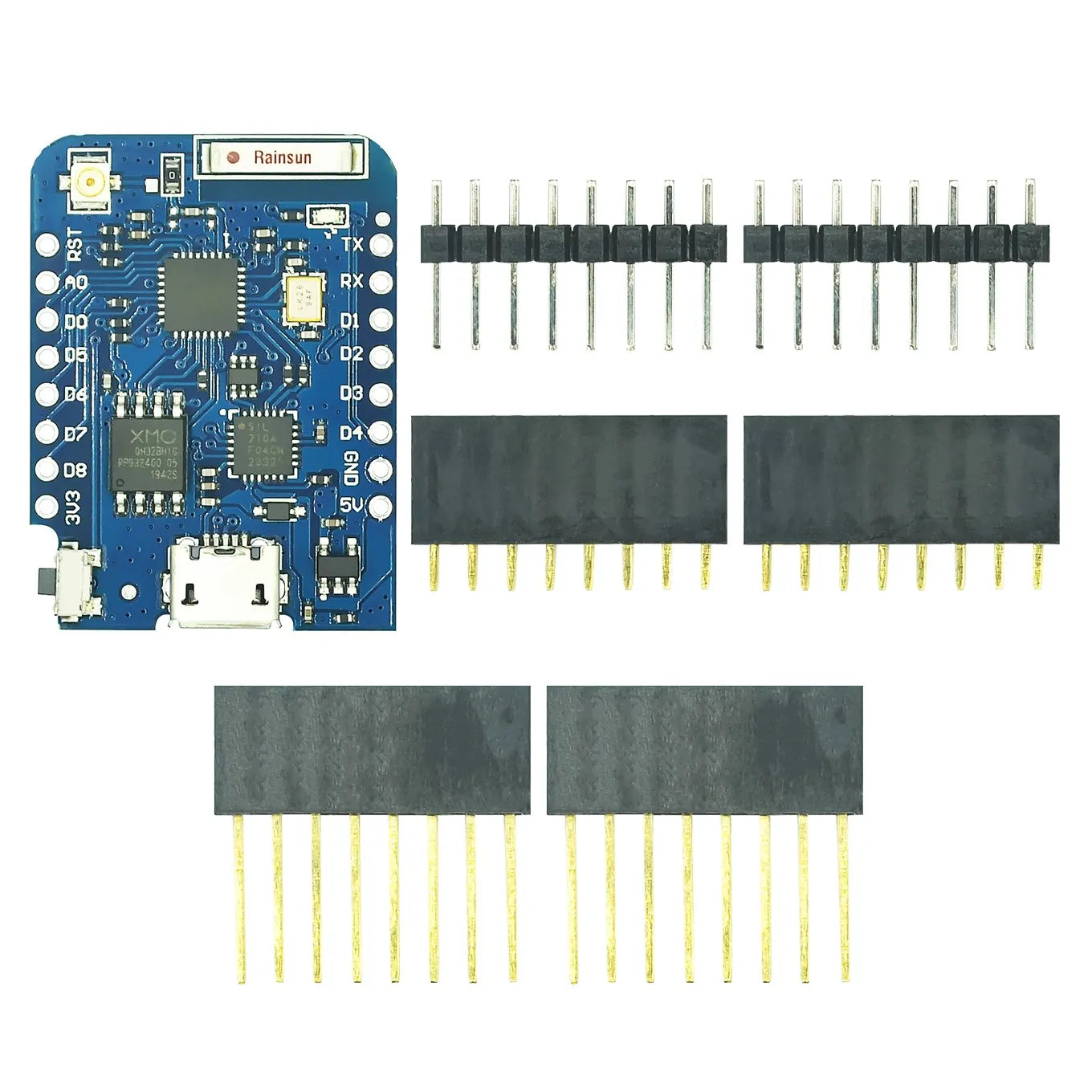

WEMOS D1 Mini Pro With External Antenna Connector Without Antenna
₨ 760
1 in stock
Have External Connector for an antenna with ESP8266 CP2104 WIFI Development Board With Compatible pins for WEMOS D1 Mini.
Features:
- 11 digital input/output pins
- Interrupt/PWM/I2C/one-wire
- 1 analog input(3.2V max input)
- 4M byte Flash
- External antenna connector
- Built-in ceramic antenna
- New CP2104 USB-TO-UART IC
- Same size as D1 mini, but more light
Specification
- Microcontroller ESP-8266EX
- Operating Voltage 3.3V
- Digital I/O Pins 11
- Analog Input Pins 1(Max input: 3.2V)
- Clock Speed 80MHz/160MHz
- Flash 4M bytes
- Length 34.2mm
- Width 25.6mm
- Weight 2.5g
- NOTE: All of the IO pins have interrupt/PWM/I2C/one-wire support except D0, All of the IO pins run at 3.3V.
Package
- 1 x D1 Mini Pro V1.1.0
- 1 x Set of header pins
Downloads:
Package includes:
- 1x WEMOS D1 Mini Pro module
- 2x 20-pin headers (customer can cut small piece as needed)
