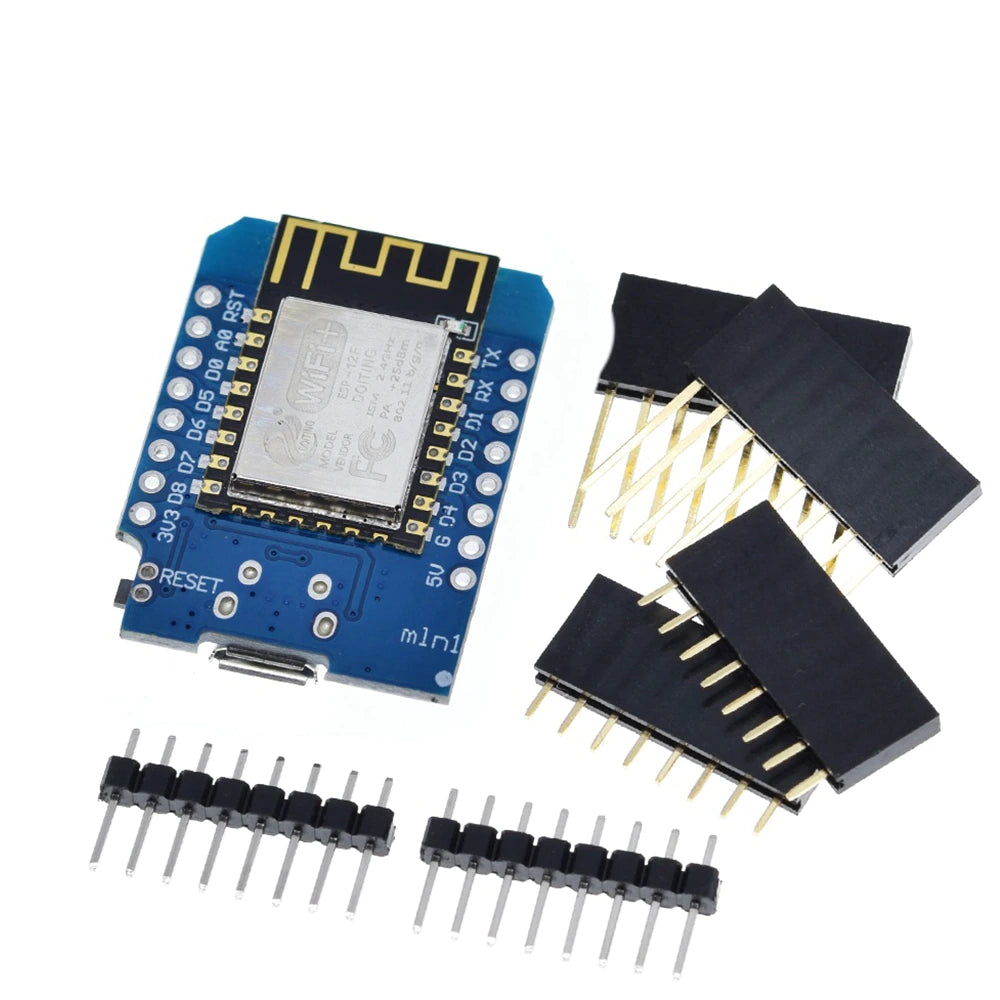

ESP12E Wemos D1 Mini WiFi Development Board

The Wemos D1 Mini is a compact, feature-rich WiFi development board based on the ESP8266 ESP-12E module. It's one of the most popular boards for IoT prototyping thanks to its small footprint, built-in WiFi, and full Arduino IDE compatibility — making it ideal for home automation, wireless sensors, and smart devices.

Key Features

  • Microcontroller: ESP8266 ESP-12E module
  • WiFi: 802.11 b/g/n built-in (2.4 GHz)
  • Operating Voltage: 3.3V (5V tolerant via onboard regulator)
  • Clock Speed: 80 MHz / 160 MHz
  • Flash Memory: 4 MB
  • Digital I/O Pins: 11
  • Analog Input: 1 (3.3V max)
  • USB Interface: Micro USB (CH340 USB-to-UART)
  • Form Factor: Mini (34mm × 25mm)
  • Shield Ecosystem: Compatible with a wide range of D1 Mini shields

Ideal Applications

  • Home automation and smart switches
  • Wireless sensor nodes (temperature, humidity, motion)
  • IoT data logging and MQTT clients
  • Web servers and REST API clients
  • Battery-powered WiFi projects with deep sleep support

Programming & Compatibility

  • Fully compatible with Arduino IDE (ESP8266 core)
  • Supports MicroPython and Lua (NodeMCU)
  • Works with ESPHome and Home Assistant

Package Includes

  • 1 × Wemos D1 Mini ESP8266 ESP-12E Development Board
